VALVES

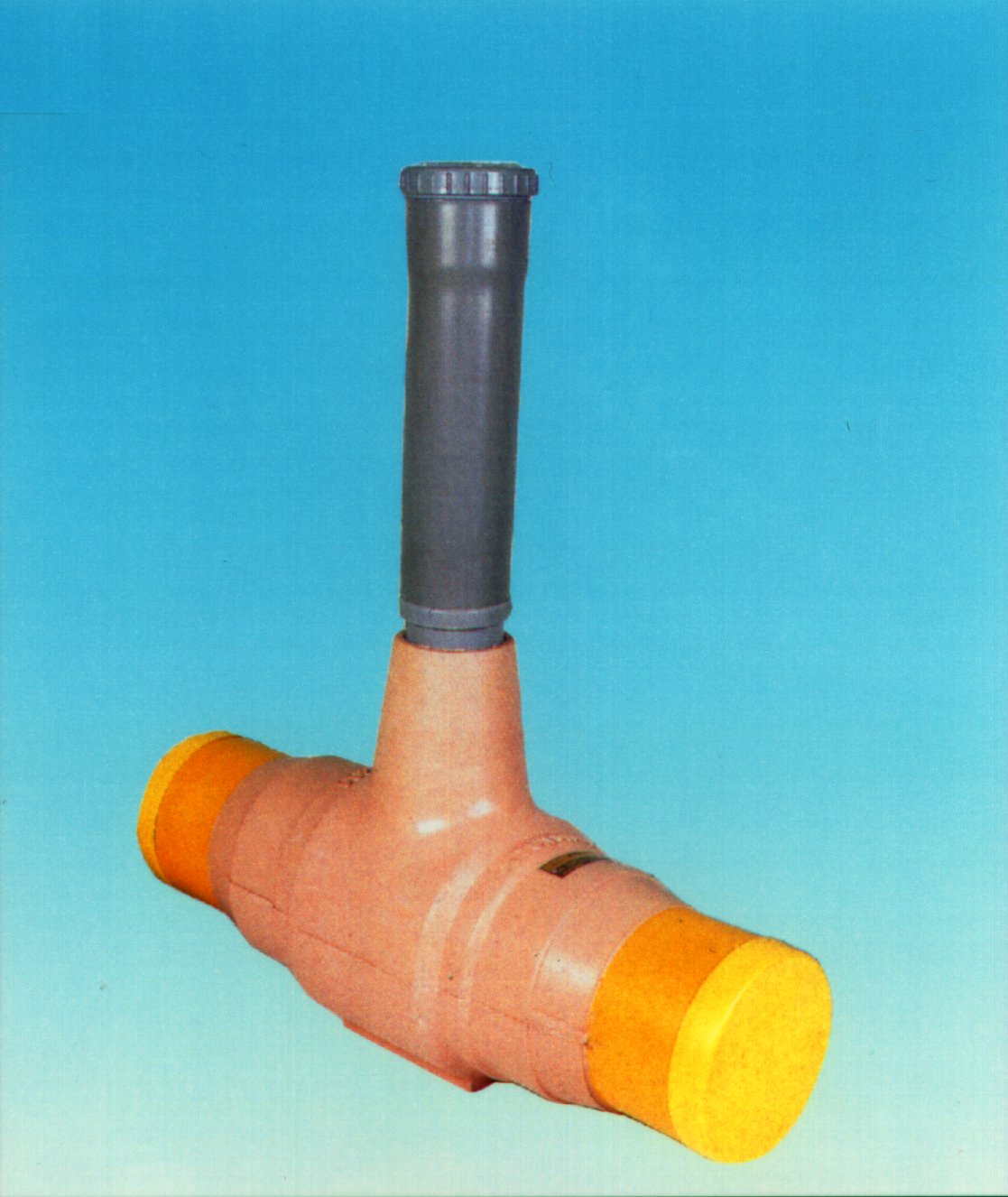

ANTONweb2.jpg (183904 octets) Available from DN25 to DN300 these steel valves with stainless steel ball show two types:

    Full bore flow or reduced bore flow.

    MPB (4 Bar) or MPC(25 Bar) pressure rating applies.

    Usually manufactured with butt welding connexions, it can also be delivered with flanges .

    Valve body is coated with a polyurethanne coating to give an external protection .

    The spindle square is sized at GDF dimensions ,and is protected by a basic or a telescopic extension.

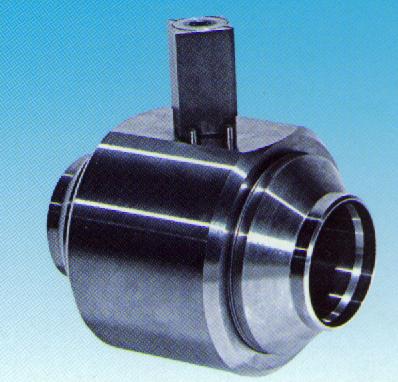

Robinet nu.JPG (27944 octets)

Designed with a free ball up to DN 100, a shaftball from DN150 allow to use a low torque for actuation.

However big valves are fitted with a reduction to allow hand actuation. An electric actuator can also be fitted.

All valves can be delivered with a EN10204-3.1.B certificate if this is specified when ordering.
